RAVEN & LAS BRISAS MOHAWK – MEGAPACK – PLANS AND MANUALS PLUS INFO PACK FOR HOMEBUILD

$95.00

YOU ARE BUYING:

-SCANS OF PLANS

-MANUALS

-LOTS OF ADDITIONAL INFO

-TECHNICAL SUPPORT BY E-MAIL AND IN MESSENGERS

ALSO YOU CAN ORDER CNC FILES AND SOLIDWORKS MODEL.

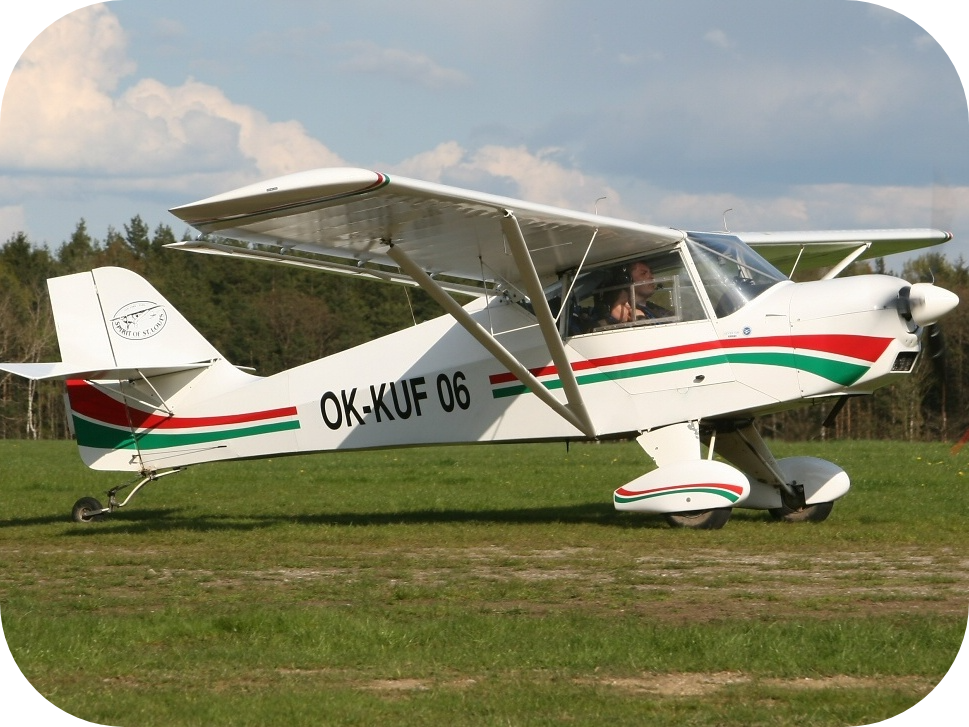

Build a KITFOX – AVID FLYER Replica from Plans.. Very similar in construction, performance, appearance and dimensions to the Avid Flyer. It is a high wing 2 seater, of tube and fabric construction. It has simple fore and aft aluminium tube wing spars and the wings can be folded back for trailering or to save hangar space. There are 45 detail PDF File drawings. Included is a comprehensive 160+ page PDF Builder’s Manual, which has building instructions and a complete hardware and material list.

Specifications:
Empty weight 440 lbs with a 50hp Rotax 503, (Could be equipped with your choice of engines up to 80 hp.)
Gross weight 850 lbs
Cruise speed 75mph
Take off and approach 55mph
Stall 45 mph
Take off roll 275 ft with 2 on board
Landing roll 275 feet.
Wing Span 30 ft
Wing area 120 sq ft
Length 18 ft
Cabin width 36″ (can be widened to 39″ or as builder choses).
