KITFOX REPLICA PLANS FOR HOMEBUILD – SIMPLE & CHEAP BUILD 2 SEAT STOL AIRCRAFT
DELIVERY IS POSSIBLE IN TWO OPTIONS:
– DOWNLOAD WITH GOOGLE CLOUD – 0-3 DAYS,
– USB FLASH DRIVE BY MAIL – 14-45 DAYS – DEPENDS ON THE RANGE OF YOUR COUNTRY AND CUSTOMS RULES.
BY BUYING A PRODUCT YOU WILL RECEIVE:
– SCAN OF DRAWINGS FOR BUILDING YOUR PLANE,
– PHOTOGRAPHY AND VIDEO.
DELIVERY IS FREE.
THANK YOU FOR YOUR PURCHASE.

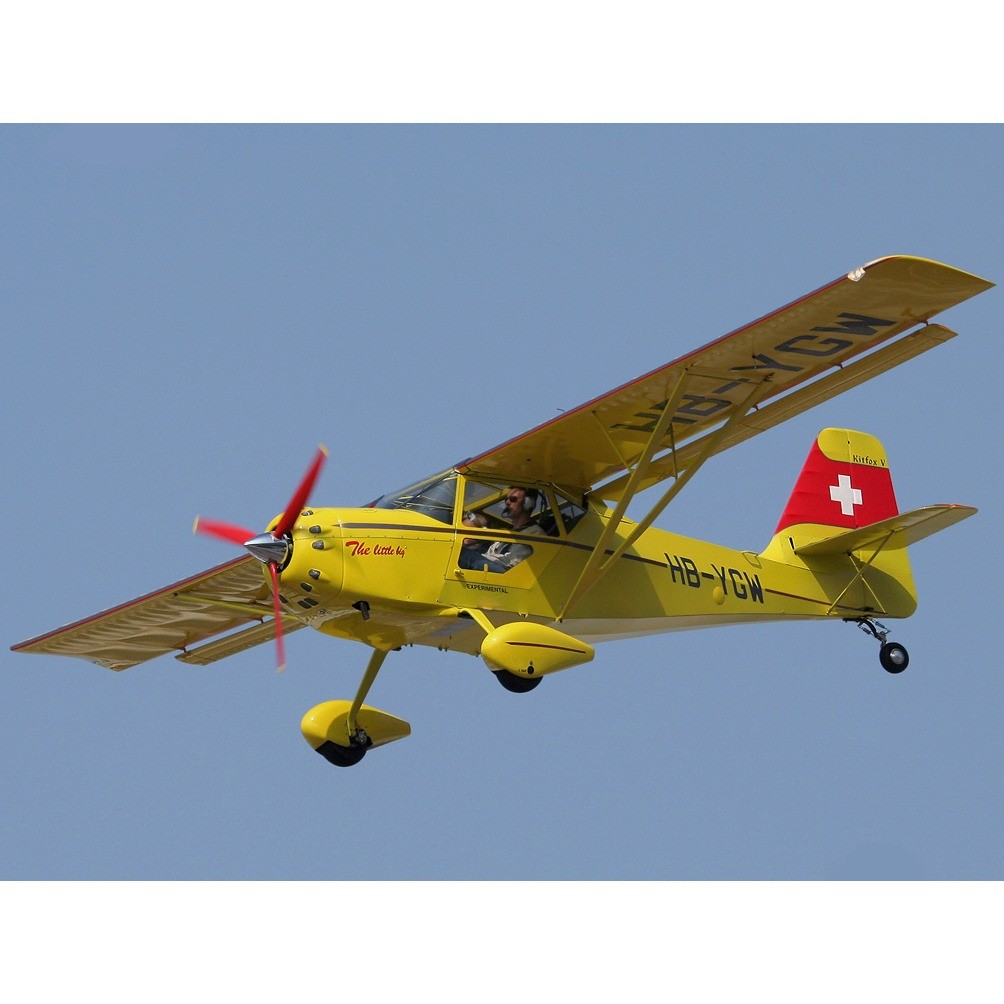

Very similar in construction, performance, appearance and dimensions to the Kitfox and the Avid Flyer. It is a high wing 2 seater, of tube and fabric construction. It has simple fore and aft aluminium tube wing spars and the wings can be folded back for trailering or to save hangar space. There are 45 detail PDF File drawings. Included is a comprehensive 160+ page PDF Builder’s Manual, which has building instructions and a complete hardware and material list.
Empty weight 440 lbs with a 50hp Rotax 503, (Could be equipped with your choice of engines up to 80 hp.)
Gross weight 850 lbs
Cruise speed 75mph
Take off and approach 55mph
Stall 45 mph
Take off roll 275 ft with 2 on board
Landing roll 275 feet.
Wing Span 30 ft
Wing area 120 sq ft
Length 18 ft
Cabin width 36″ (can be widened to 39″ or as builder choses).
