LASER Z-2300 – PLANS AND INFORMATION SET FOR HOMEBUILD HIGH PERFOMANCE 2 SEAT AIRBATIC AIRCRAFT

$150.00

DELIVERY IS POSSIBLE IN TWO OPTIONS:
– DOWNLOAD WITH GOOGLE CLOUD – 0-3 DAYS,
– USB FLASH DRIVE BY MAIL – 14-45 DAYS – DEPENDS ON THE RANGE OF YOUR COUNTRY AND CUSTOMS RULES.

BY BUYING A PRODUCT YOU WILL RECEIVE:
– SCAN OF DRAWINGS FOR BUILDING YOUR PLANE,
– MANUALS,
– PHOTOGRAPHY AND VIDEO.

DELIVERY IS FREE.

THANK YOU FOR YOUR PURCHASE.

Description

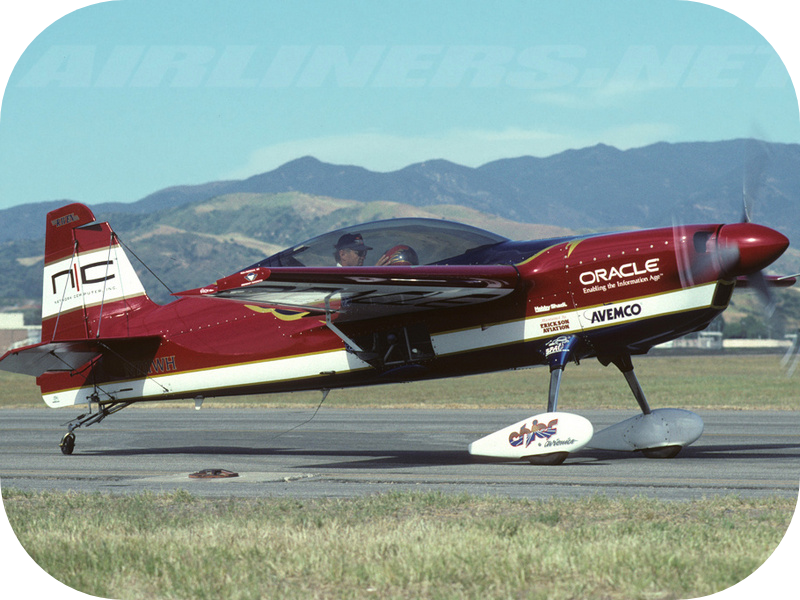

The Laser Z-2300 was a natural extension from the 4 cyl single seat model.

Now you can fly a tandem seat Laser Z with the same ease of building.
The Laser 2300 can be built in the same manner as that from the Z-200 from scratch.

The plans for the Laser Z-2300 show all primary structure and layout.
The Z-2300 is designed and based off of the Lycoming I0-540-C4B5 6 cyl.  260hp engine.

Laser Z-2300 specs:

Cruise kts. 165-170

Stall mph 60

Range s.m. N/A

Rate of Climb, fpm 2800

Takeoff/Landing Distance, ft.1000’ / 2000’ @5280’msl @MTOW

Engine Used Lycoming 6 CYL 0-540 C4B5 parallel valve

HP/HP Range 260 -300 hp

Fuel Capacity 50gal max including wing tanks

Empty/Gross Weight lb.1250-1300 lbs typical

Wingspan ft.26’

Wing Area sq. ft.105 sq/ft.

Seats 2

Cockpit Width in. 24”
